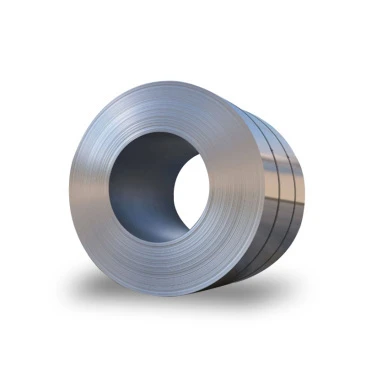

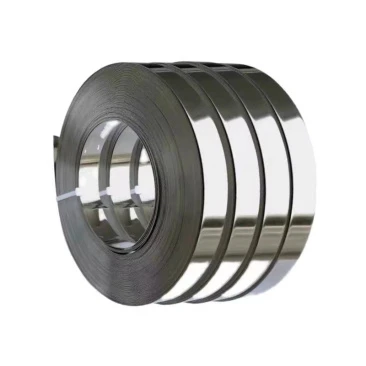

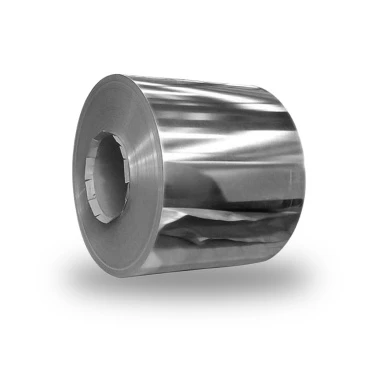

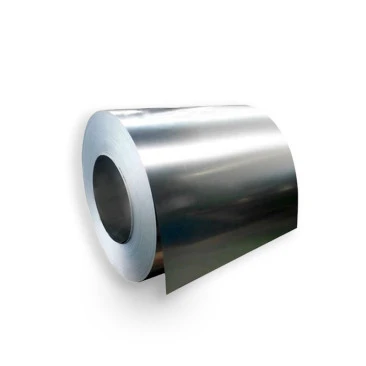

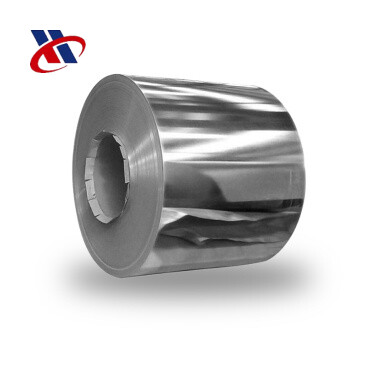

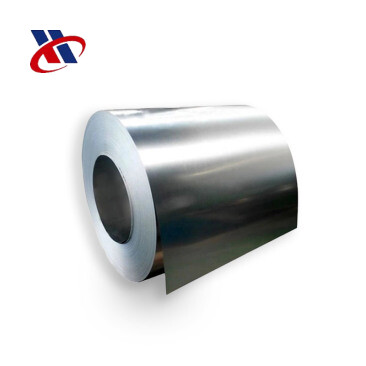

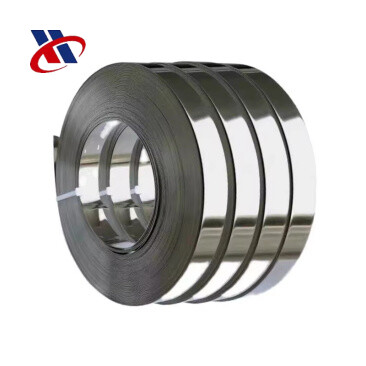

Cold Rolled Ordinary Oriented Silicon Steel
Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value.
Phone ：+8618822621779
WhatsApp : +8618822621779
Email : tina@huaqisteelgroup.com
Contact Us

Product Details

Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value. The cold-rolled strip has a smooth surface, good punching performance and high core filling factor.


Product Parameters

CategorySilicon Content/%Nominal Thickness/MmLord To Use Way
Hot Rolled Silicon Steel(No Orientation)Hot rolled low silicon steel(Motor Steel)1.0~2.50.5Household motors and micromotors
Hot rolled high silicon steel(Transformer steel)3.0~4.50.35,0.50Transformer
Cold Rolled Electrical SteelCold rolled non-oriented electrical steel(Motor Steel)Low carbon electrical steel≤ 0.50.50,0.65Small transformers and ballasts for household motors, micromotors
Silicon steel>0.5~3.50.35,0.50Medium and large motors, generators and transformers
Cold rolled grain oriented silicon steel(Transformer steel)Ordinary oriented silicon steel2.9~3.30.18,0.23,0.27
0.30,0.35		Large, medium and small transformers and ballasts
High magnetic induction oriented silicon steel
Special Purpose Silicon SteelCold rolled grain oriented silicon steel strip2.9~3.30.03,0.05,0.10Pulse transformer, magnetic amplifier, high frequency transformer and electric welding machine
Cold rolled non-oriented silicon steel strip3.00.15,0.20High-frequency motors and generators
Cold rolled non-oriented silicon steel for magnetic switch3.00.70Relays and magnetic switches
Cold rolled high silicon steel6.50.1~0.5High-frequency motors, transformers and magnetic shielding

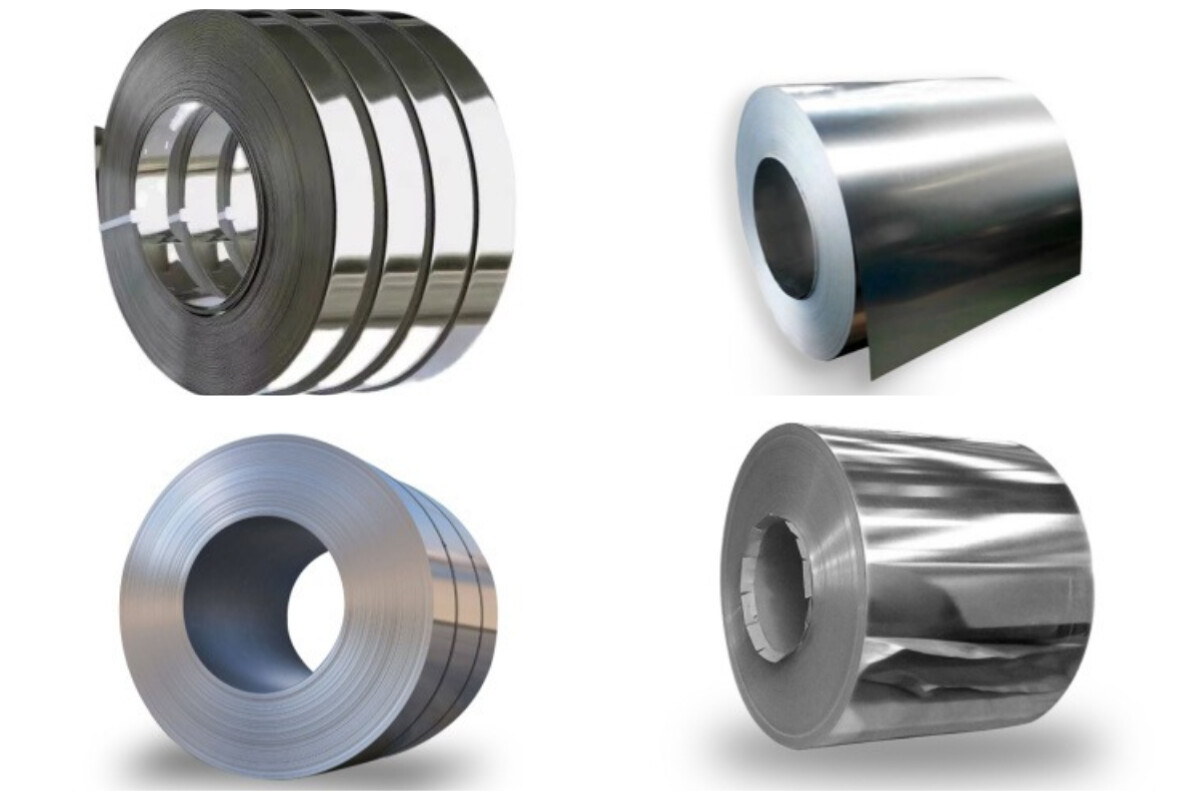

Product Display

下载 (1).jpg

Product Application

下载 (1).jpg

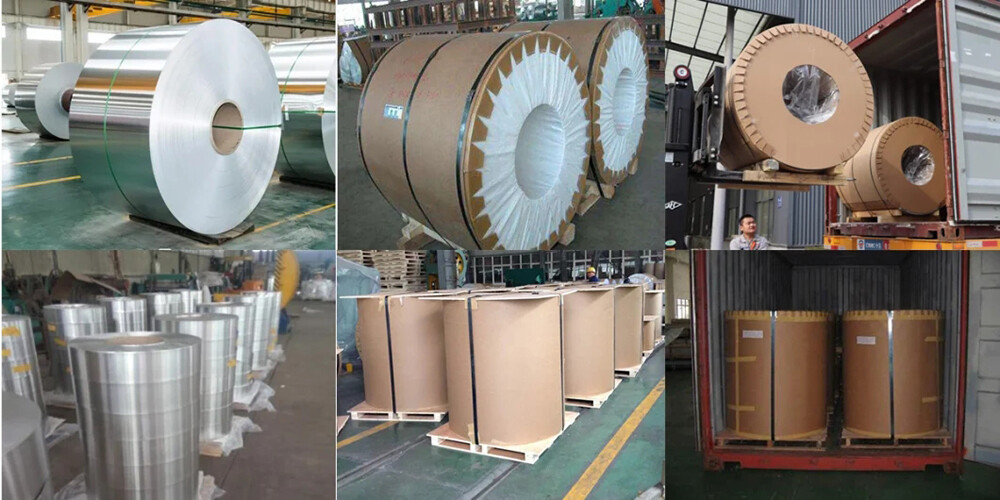

Product Packaging


Factory Display

  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display
  • Factory Display

FAQ

Q: Do you accept the third party inspection?
A: Yes, absolutely we accept.
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 20 years' experience, and our company also is a very professional a trade company for steel products.We can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to deliver on time,indemnity clause in contract terms will work if we couldn't.
Q: Do you provide samples ? Is it free or extra ?
A: The samples are free,you just need to pay the courier freight.
Q: How could you guarantee your products?
A: Products are manufactured by certified workshops, inspected by professional inspector.

Cooperation Process

Communication needs

We have complete after-sales service and technical support


Get quotes and lead times

We have complete after-sales service and technical support


Product delivery

We have complete after-sales service and technical support
